General Information of This Antibody-drug Conjugate (ADC)
ADC ID
DRG0ZLZLP
ADC Name
Trastuzumab 20
Synonyms
Trastuzumab 20
   Click to Show/Hide
Organization
King's College London; University of Southampton; University of Chittagong.
Drug Status
Investigative

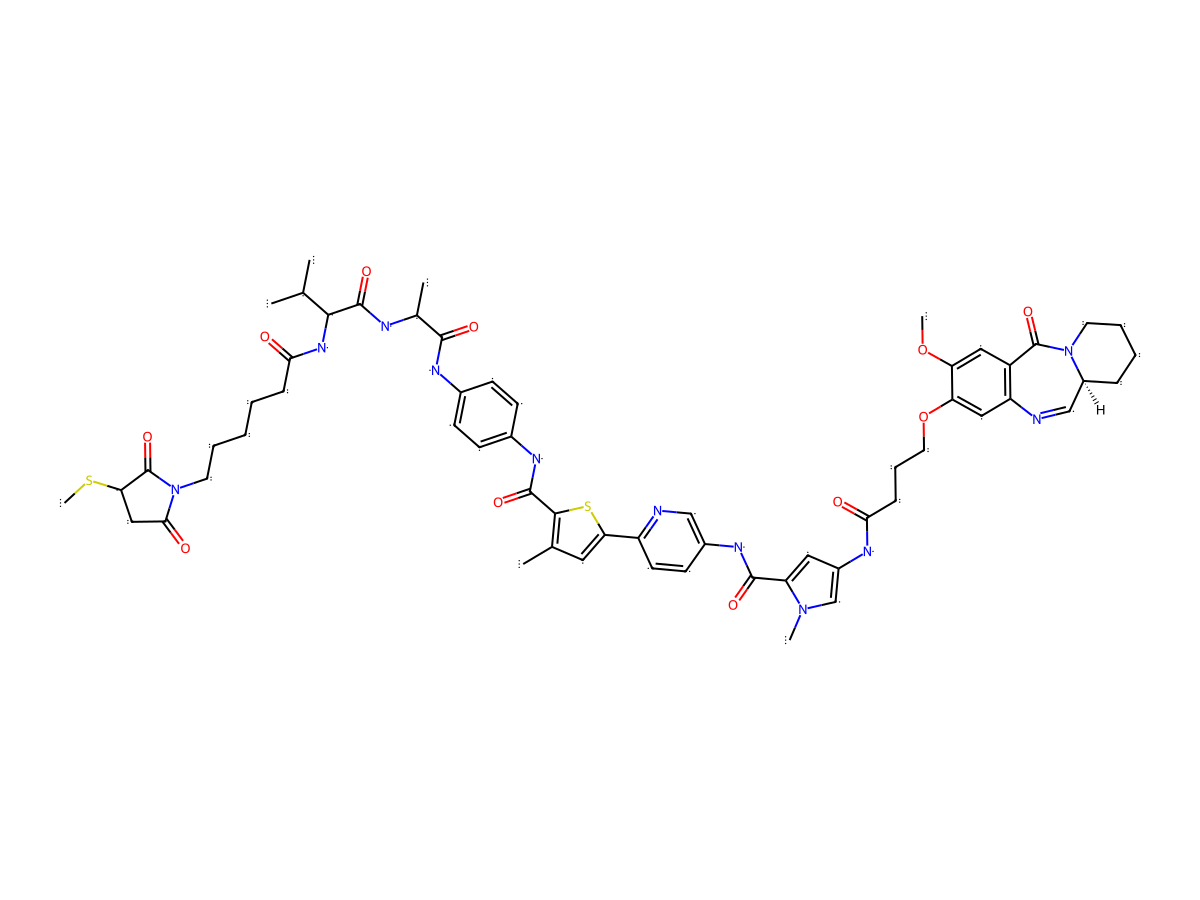

Structure
Antibody Name
Trastuzumab
 Antibody Info
Antigen Name
Receptor tyrosine-protein kinase erbB-2 (ERBB2)
 Antigen Info
Payload Name
PBD-butanamide derivative
 Payload Info
Therapeutic Target
DNA topoisomerase I (TOP1)
 Target Info
Linker Name
Mc-Val-Ala
 Linker Info
General Information of The Activity Data Related to This ADC
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Standard Type Value Units Cell Line Disease Model
Half Maximal inhibitory Concentration (lC50)
1.3&#1770.04
nM
CVCL_0237
Pancreatic ductal adenocarcinoma
Half Maximal inhibitory Concentration (lC50)
29.7&#1771.55
nM
CVCL_0031
Invasive breast carcinoma
Full List of Activity Data of This Antibody-drug Conjugate
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50) 1.3&#1770.04 nM Positive HER2 expression (HER2+++/++)
Method Description
Tumor cell lines were maintained in RPMI1640 medium supplemented with 10% heat-inactivated fetal bovine serum, 2 mM L-glutamine and 1 mM sodium pyruvate. 1800 cells per well were seeded in a volume of 180 uL in a 96-well flat bottom polystyrene plate. The cells were allowed to adhere overnight at 37 °C in a CO2 incubator. Ligands were initially formulated in dimethyl sulphoxide, and stocks stored at -80 °C. They were then further formulated at 10× concentration in RPMI1640 medium. 20 uL of diluted samples were added into each treatment well. On each plate, blank wells with no cells, and untreated wells containing cells, were included. Plates were then cultured at 37 °C in a CO2 incubator for 96 h. Cytotoxicity was evaluated in triplicate using a tetrazolium salt-based assay, the MTT assay. After 96 h, the supernatant was removed from each well and 200 uL of a sterile filtered 500 ug mL-1 MTT solution in water added to each well. The plates were then incubated at 37 °C in a CO2 incubator for 4 h. The supernatant was then removed and the formazan crystals formed solubilized by adding 150 uL of dimethyl sulphoxide to each well. The plate was then read on a plate reader at 540 nm, and percentage cell survival calculated as follows: ((mean absorbance treated wells at concentration x - mean absorbance blank wells) ÷ (mean absorbance untreated wells at concentration x - mean absorbance blank wells)) × 100. Data were plotted as concentration in nM vs. % cell survival, and IC50 values for inhibition of cell growth were determined with the GraphPad Prism software using non-linear regression.

   Click to Show/Hide
In Vitro Model Pancreatic ductal adenocarcinoma Capan-1 cells CVCL_0237
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50) 29.7&#1771.55 nM Negative HER2 expression (HER2-)
Method Description
Tumor cell lines were maintained in RPMI1640 medium supplemented with 10% heat-inactivated fetal bovine serum, 2 mM L-glutamine and 1 mM sodium pyruvate. 1800 cells per well were seeded in a volume of 180 uL in a 96-well flat bottom polystyrene plate. The cells were allowed to adhere overnight at 37 °C in a CO2 incubator. Ligands were initially formulated in dimethyl sulphoxide, and stocks stored at -80 °C. They were then further formulated at 10× concentration in RPMI1640 medium. 20 uL of diluted samples were added into each treatment well. On each plate, blank wells with no cells, and untreated wells containing cells, were included. Plates were then cultured at 37 °C in a CO2 incubator for 96 h. Cytotoxicity was evaluated in triplicate using a tetrazolium salt-based assay, the MTT assay. After 96 h, the supernatant was removed from each well and 200 uL of a sterile filtered 500 ug mL-1 MTT solution in water added to each well. The plates were then incubated at 37 °C in a CO2 incubator for 4 h. The supernatant was then removed and the formazan crystals formed solubilized by adding 150 uL of dimethyl sulphoxide to each well. The plate was then read on a plate reader at 540 nm, and percentage cell survival calculated as follows: ((mean absorbance treated wells at concentration x - mean absorbance blank wells) ÷ (mean absorbance untreated wells at concentration x - mean absorbance blank wells)) × 100. Data were plotted as concentration in nM vs. % cell survival, and IC50 values for inhibition of cell growth were determined with the GraphPad Prism software using non-linear regression.

   Click to Show/Hide
In Vitro Model Invasive breast carcinoma MCF-7 cells CVCL_0031
References
Ref 1 A novel DNA sequence-selective, guanine mono-alkylating ADC payload suitable for solid tumour treatment
