General Information of This Antibody-drug Conjugate (ADC)
ADC ID
DRG0IQMIM
ADC Name
38354417 T-DL9
Synonyms
T-DL9
   Click to Show/Hide
Organization
ADC Therapeutic Development, Zymeworks Inc., Vancouver, British Columbia, Canada.
Drug Status
Investigative

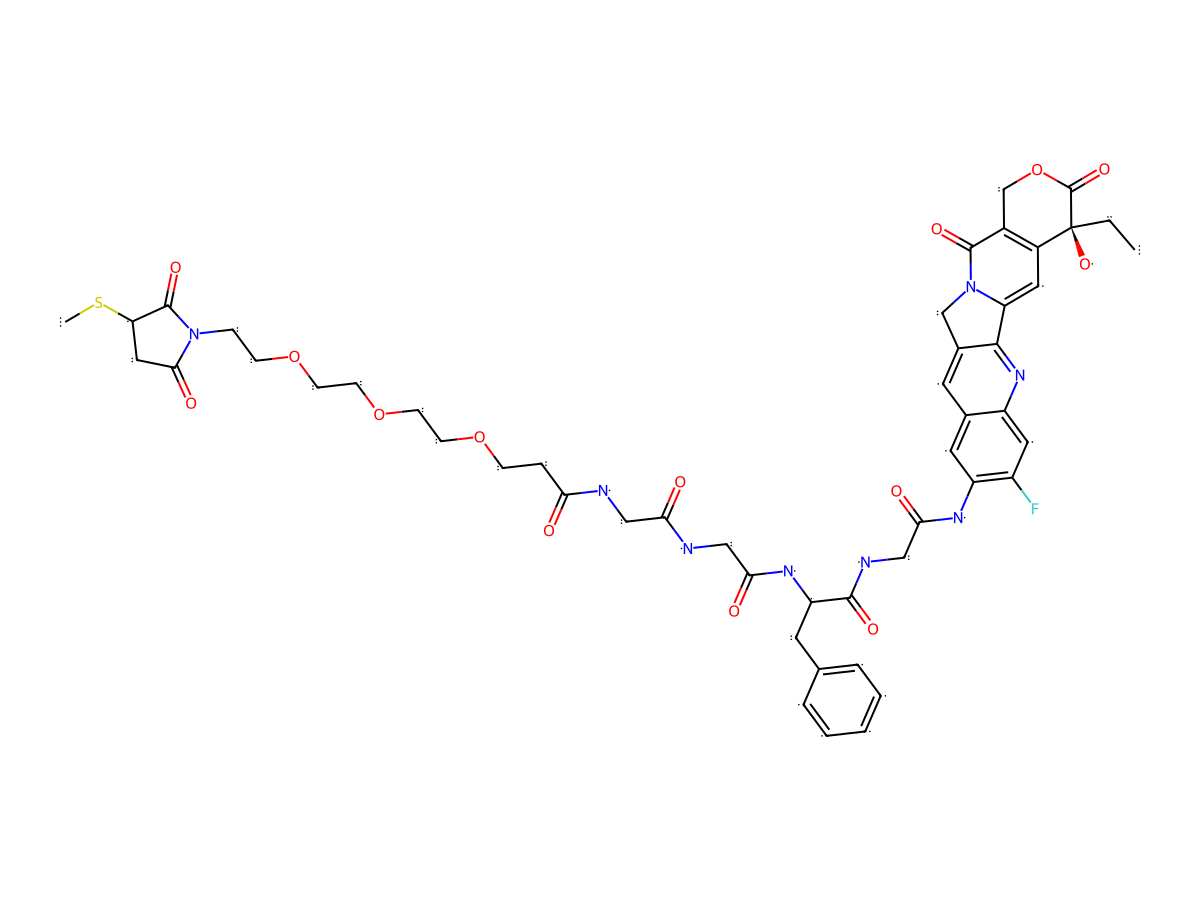

Structure
Antibody Name
Trastuzumab
 Antibody Info
Antigen Name
Receptor tyrosine-protein kinase erbB-2 (ERBB2)
 Antigen Info
Payload Name
10NH2-11F-Camptothecin
 Payload Info
Therapeutic Target
DNA topoisomerase I (TOP1)
 Target Info
Linker Name
MT-GGFG-AM
 Linker Info
Conjugate Type
Random conjugation through reduced inter-chain cysteines.
ADC-specific functional property(2027 Update)
Circulating Stability
Click To Hide/Show 1 ADC-specific functional property Data
Incubation Time 7days Release 0% Reference
[1]
Incubation Medium mouse plasma
Description
The stability of the nine ADCs was evaluated in mouse plasma for 7 days followed by immunoprecipitation-mass spectrometry analysis.
General Information of The Activity Data Related to This ADC
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Standard Type Value Units Cell Line Disease Model
Half Maximal inhibitory Concentration (lC50)
0.51
nM
CVCL_0033
Breast adenocarcinoma
Half Maximal inhibitory Concentration (lC50)
> 30
nM
CVCL_0419
Breast adenocarcinoma
Full List of Activity Data of This Antibody-drug Conjugate
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50) 0.51 nM High HER2 expression (HER2 +++)
Method Description
A total of 30,000 SK-BR-3 (HER2-high) cells were seeded either as monocultures or cocultures in TC-treated 48-well microtiter plates (Greiner Bio-One, catalog no. 667180) and treated with 1.0 or 0.1 nmol/L ADCs diluted in growth medium.
In Vitro Model Breast adenocarcinoma SK-BR-3 cells CVCL_0033
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50) > 30 nM Negative HER2 expression (HER2-)
Method Description
A total of 10,000 MDA-MB-468 (HER2-negative) cells were seeded either as monocultures or cocultures in TC-treated 48-well microtiter plates (Greiner Bio-One, catalog no. 667180) and treated with 1.0 or 0.1 nmol/L ADCs diluted in growth medium.
In Vitro Model Breast adenocarcinoma MDA-MB-468 cells CVCL_0419
References
Ref 1 Design and Evaluation of ZD06519, a Novel Camptothecin Payload for Antibody Drug Conjugates
