General Information of This Payload
Payload ID
PAY0RMJYN
Name
6i-5657 Payload
Synonyms
6i-5657 Payload
   Click to Show/Hide
Target DNA topoisomerase I (TOP1)

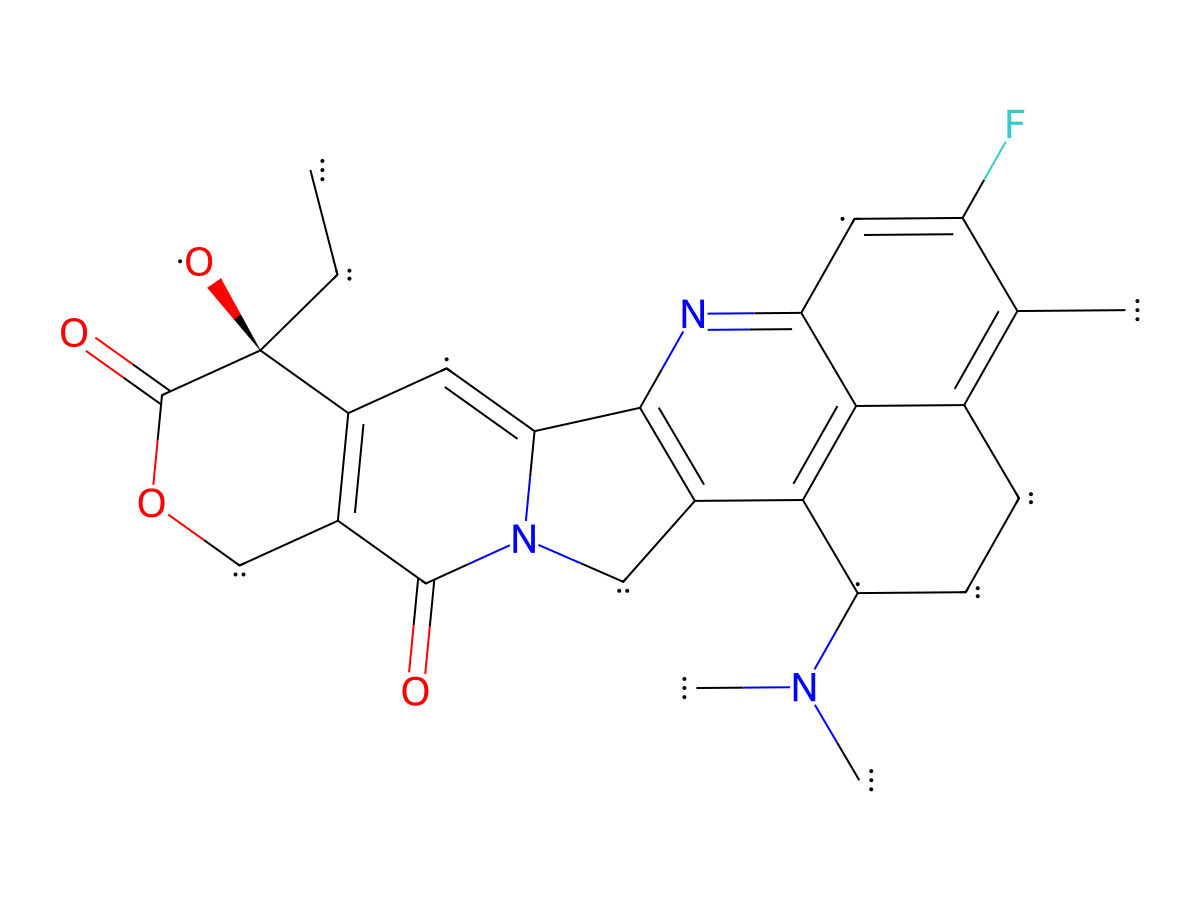

Structure
Formula
C26H26FN3O4
Isosmiles
CN([C@H](C1=C2CN3C(C(COC4=O)=C([C@@]4(O)CC)C=C3C2=NC5=C16)=O)CCC6=C(C(F)=C5)C)C
PubChem CID
168194326
InChI
InChI=1S/C26H26FN3O4/c1-5-26(33)16-8-20-23-14(10-30(20)24(31)15(16)11-34-25(26)32)22-19(29(3)4)7-6-13-12(2)17(27)9-18(28-23)21(13)22/h8-9,19,33H,5-7,10-11H2,1-4H3/t19-,26-/m0/s1
InChIKey
PJLABXDCBXXRNW-SIBVEZHUSA-N
Pharmaceutical Properties
Molecule Weight
463.509
Polar area
84.66
Complexity
1454.352438
xlogp Value
3.07602
Heavy Count
34
Rot Bonds
2
Hbond acc
7
Hbond Donor
1
Each Antibody-drug Conjugate Related to This Payload
Full Information of The Activity Data of The ADC(s) Related to This Payload
wO2024105206A1 5k-2658 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 14 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 14 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
wO2024105206A1 6i-5657 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 15 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 15 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
wO2024105206A1 6k-2658 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 16 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 16 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
References
Ref 1 Antibody-drug conjugates cleavable in a tumor microenvironment
