Payload Information
General Information of This Payload
| Payload ID | PAY0XKEKW |
|||||
|---|---|---|---|---|---|---|
| Name | FDA026-LE22 payload |
|||||
| Synonyms |
YSWPAY0018
Click to Show/Hide
|
|||||

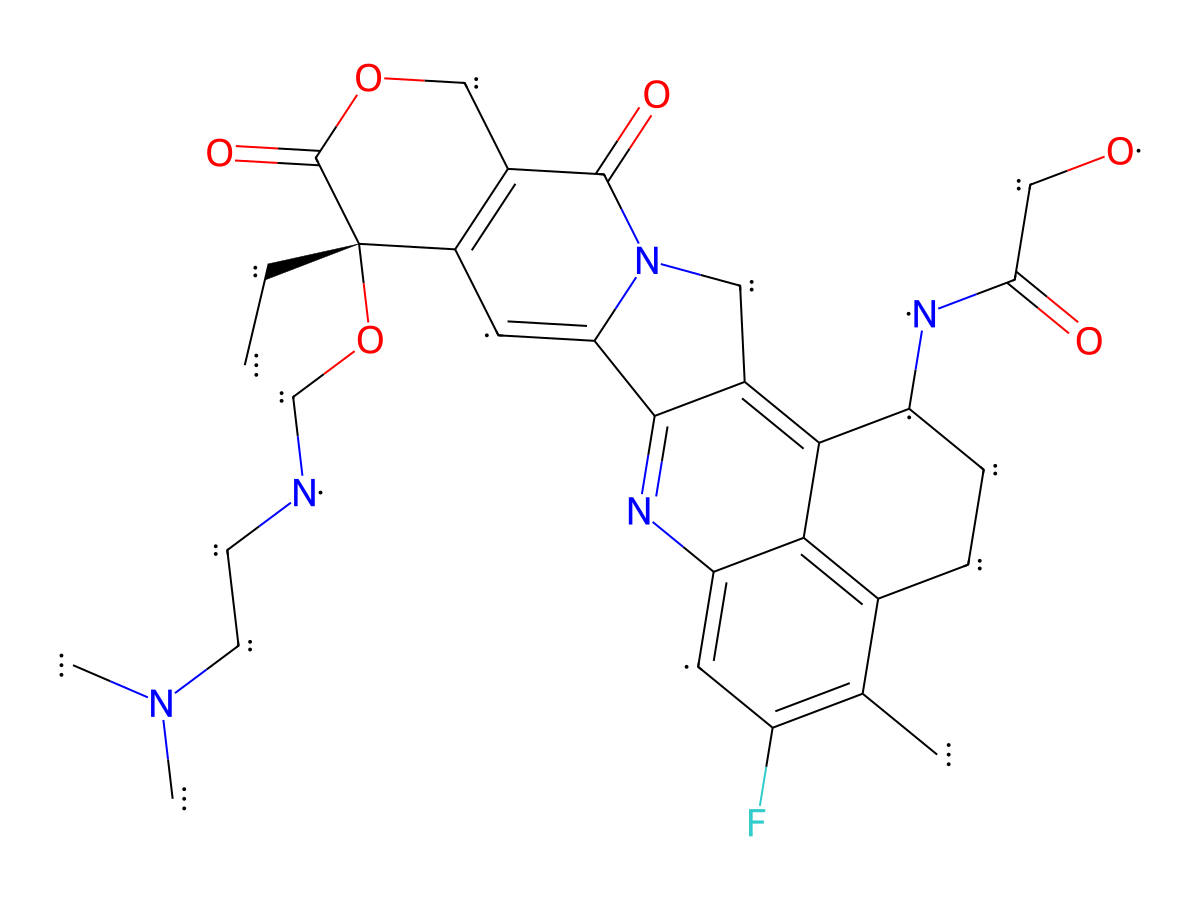

| Structure |
|
|||||
| Formula | C31H36FN5O6 |
|||||
| Isosmiles | CC1=C(F)C=C2C3=C1CC[C@H](NC(CO)=O)C3=C(CN4C5=CC([C@](CC)(OCNCCN(C)C)C6=O)=C(CO6)C4=O)C5=N2 |
|||||
| InChI |
InChI=1S/C31H36FN5O6/c1-5-31(43-15-33-8-9-36(3)4)20-10-24-28-18(12-37(24)29(40)19(20)14-42-30(31)41)27-22(34-25(39)13-38)7-6-17-16(2)21(32)11-23(35-28)26(17)27/h10-11,22,33,38H,5-9,12-15H2,1-4H3,(H,34,39)/t22-,31-/m0/s1
|
|||||
| InChIKey |
JUNPBRXXHCBDTA-UGDMGKLASA-N
|
|||||
| Pharmaceutical Properties | Molecule Weight |
593.656 |
Polar area |
135.02 |
||
Complexity |
1667.069641 |
xlogp Value |
1.75592 |
|||
Heavy Count |
43 |
Rot Bonds |
9 |
|||
Hbond acc |
10 |
Hbond Donor |
3 |
|||
Each Antibody-drug Conjugate Related to This Payload
Full Information of The Activity Data of The ADC(s) Related to This Payload
FDA026-LE22 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
52.7 nM
|
|||
| Method Description |
SK-BR-3 (ATCC) cells were selected as the cell line for in vitro activity detection experiments. 2000 cells were inoculated into each well of a 96-well cell culture plate and cultured for 20-24 hours. The antibody-drug conjugate prepared according to the method in Example 3 was formulated with L15 cell culture medium containing 10% FBS into 11 concentration gradients of test solution: 1000, 166.7, 55.6, 18.6, 6.17, 2.06, 0.69, 0.23, 0.08, 0.008 and OnM. 100 ul of the diluted test solution per well was added to the culture plate containing the inoculated cells and incubated in a 37°C, 5% CO, incubator for 144 hours. Then, CellTiter-Glo® Luminescent Cell Viability Assay Reagent (50 ul/well) was added, and the mixture was shaken at 500 rpm at room temperature for 10 minutes. The data were read using a SpectraMaxL microplate reader (OD570nm, with 2-second interval readings), and the IC50 results were calculated.
Click to Show/Hide
|
||||
| In Vitro Model | Breast adenocarcinoma | SK-BR-3 cells | CVCL_0033 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
78.44 nM
|
|||
| Method Description |
NCI-H820 (ATCC) cells were selected as the cell line for in vitro activity detection experiments. 2000 cells were inoculated into each well of a 96-well cell culture plate and cultured for 20-24 hours. The antibody-drug conjugate prepared according to the method in Example 3 was formulated with L15 cell culture medium containing 10% FBS into 11 concentration gradients of test solution: 1000, 166.7, 55.6, 18.6, 6.17, 2.06, 0.69, 0.23, 0.08, 0.008 and OnM. 100 ul of the diluted test solution per well was added to the culture plate containing the inoculated cells and incubated in a 37°C, 5% CO, incubator for 144 hours. Then, CellTiter-Glo® Luminescent Cell Viability Assay Reagent (50 ul/well) was added, and the mixture was shaken at 500 rpm at room temperature for 10 minutes. The data were read using a SpectraMaxL microplate reader (OD570nm, with 2-second interval readings), and the IC50 results were calculated.
Click to Show/Hide
|
||||
| In Vitro Model | Lung papillary adenocarcinoma | NCI-H820 cells | CVCL_1592 | ||
| Experiment 3 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
87.65 nM
|
|||
| Method Description |
22Rv1 (ATCC) cells were selected as the cell line for in vitro activity detection experiments. 2000 cells were inoculated into each well of a 96-well cell culture plate and cultured for 20-24 hours. The antibody-drug conjugate prepared according to the method in Example 3 was formulated with L15 cell culture medium containing 10% FBS into 11 concentration gradients of test solution: 1000, 166.7, 55.6, 18.6, 6.17, 2.06, 0.69, 0.23, 0.08, 0.008 and OnM. 100 ul of the diluted test solution per well was added to the culture plate containing the inoculated cells and incubated in a 37°C, 5% CO, incubator for 144 hours. Then, CellTiter-Glo® Luminescent Cell Viability Assay Reagent (50 ul/well) was added, and the mixture was shaken at 500 rpm at room temperature for 10 minutes. The data were read using a SpectraMaxL microplate reader (OD570nm, with 2-second interval readings), and the IC50 results were calculated.
Click to Show/Hide
|
||||
| In Vitro Model | Prostate carcinoma | 22RV1 cells | CVCL_1045 | ||
| Experiment 4 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
89.34 nM
|
|||
| Method Description |
OVCAR-8 (ATCC) cells were selected as the cell line for in vitro activity detection experiments. 2000 cells were inoculated into each well of a 96-well cell culture plate and cultured for 20-24 hours. The antibody-drug conjugate prepared according to the method in Example 3 was formulated with L15 cell culture medium containing 10% FBS into 11 concentration gradients of test solution: 1000, 166.7, 55.6, 18.6, 6.17, 2.06, 0.69, 0.23, 0.08, 0.008 and OnM. 100 ul of the diluted test solution per well was added to the culture plate containing the inoculated cells and incubated in a 37°C, 5% CO, incubator for 144 hours. Then, CellTiter-Glo® Luminescent Cell Viability Assay Reagent (50 ul/well) was added, and the mixture was shaken at 500 rpm at room temperature for 10 minutes. The data were read using a SpectraMaxL microplate reader (OD570nm, with 2-second interval readings), and the IC64 results were calculated.
Click to Show/Hide
|
||||
| In Vitro Model | High grade ovarian serous adenocarcinoma | OVCAR-8 cells | CVCL_1629 | ||
| Experiment 5 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
96.75 nM
|
|||
| Method Description |
HCC827 (ATCC) cells were selected as the cell line for in vitro activity detection experiments. 2000 cells were inoculated into each well of a 96-well cell culture plate and cultured for 20-24 hours. The antibody-drug conjugate prepared according to the method in Example 3 was formulated with L15 cell culture medium containing 10% FBS into 11 concentration gradients of test solution: 1000, 166.7, 55.6, 18.6, 6.17, 2.06, 0.69, 0.23, 0.08, 0.008 and OnM. 100 ul of the diluted test solution per well was added to the culture plate containing the inoculated cells and incubated in a 37°C, 5% CO, incubator for 144 hours. Then, CellTiter-Glo® Luminescent Cell Viability Assay Reagent (50 ul/well) was added, and the mixture was shaken at 500 rpm at room temperature for 10 minutes. The data were read using a SpectraMaxL microplate reader (OD570nm, with 2-second interval readings), and the IC64 results were calculated.
Click to Show/Hide
|
||||
| In Vitro Model | Lung adenocarcinoma | HCC827 cells | CVCL_2063 | ||
