Payload Information
General Information of This Payload
| Payload ID | PAY0HFBIY |
|||||
|---|---|---|---|---|---|---|
| Name | aHer2- (AL4c-LP1B)<sub>3.49</sub> Payload |
|||||
| Synonyms |
aHer2- (AL4c-LP1B)<sub>3.49</sub> Payload
Click to Show/Hide
|
|||||

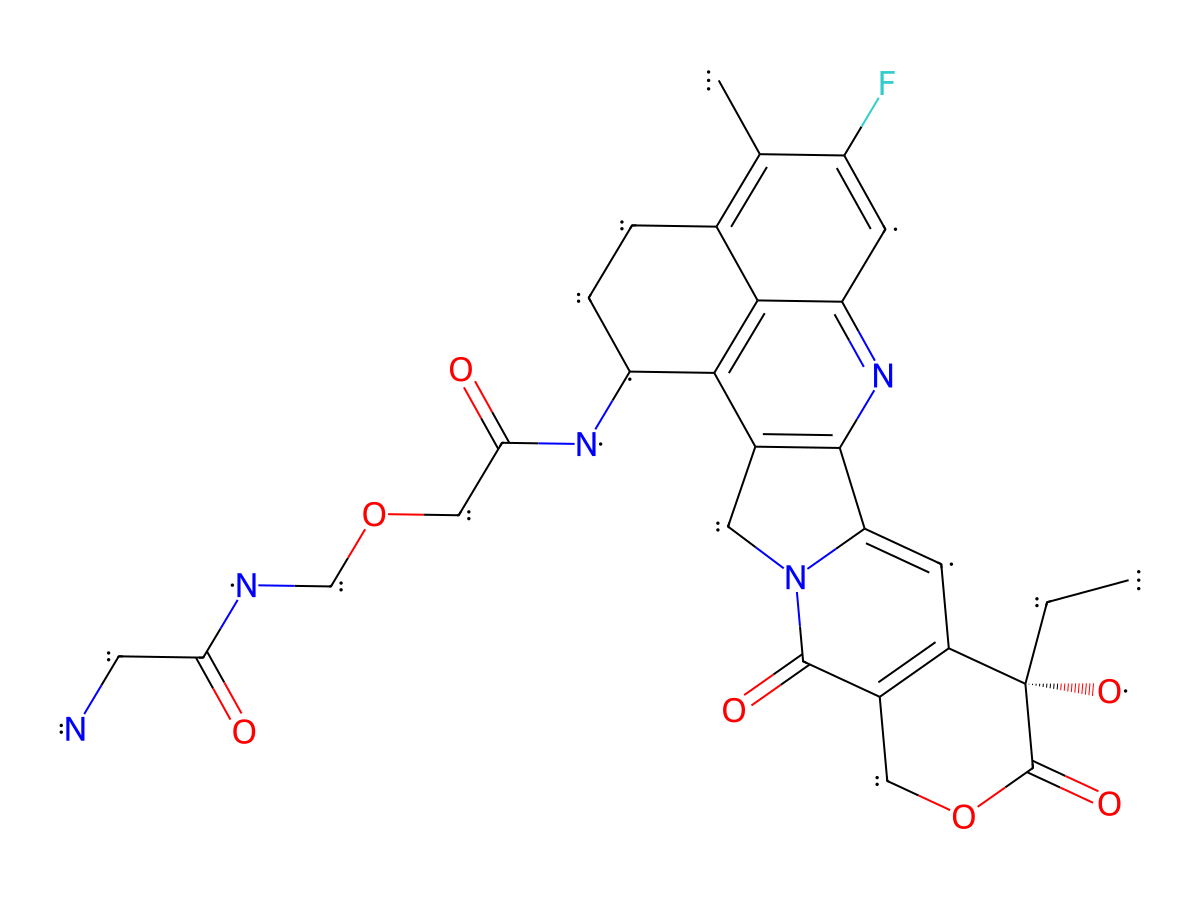

| Structure |
|
|||||
| Formula | C29H30FN5O7 |
|||||
| Isosmiles | NCC(NCOCC(N[C@H](C1=C2CN(C(C2=N3)=C4)C(C(CO5)=C4[C@@](O)(CC)C5=O)=O)CCC6=C1C3=CC(F)=C6C)=O)=O |
|||||
| InChI |
InChI=1S/C29H30FN5O7/c1-3-29(40)17-6-21-26-15(9-35(21)27(38)16(17)10-42-28(29)39)25-19(33-23(37)11-41-12-32-22(36)8-31)5-4-14-13(2)18(30)7-20(34-26)24(14)25/h6-7,19,40H,3-5,8-12,31H2,1-2H3,(H,32,36)(H,33,37)/t19-,29-/m0/s1
|
|||||
| InChIKey |
DOLQXGLTQNTQEP-SLQAJWMNSA-N
|
|||||
| Pharmaceutical Properties | Molecule Weight |
579.585 |
Polar area |
174.87 |
||
Complexity |
1698.76663 |
xlogp Value |
0.67962 |
|||
Heavy Count |
42 |
Rot Bonds |
7 |
|||
Hbond acc |
10 |
Hbond Donor |
4 |
|||
Each Antibody-drug Conjugate Related to This Payload
Full Information of The Activity Data of The ADC(s) Related to This Payload
aHer2- (AL4c-LP1B)3.49 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
0.256 nM
|
Positive HER2 expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well SK-BR-3 cells in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Breast adenocarcinoma | SK-BR-3 cells | CVCL_0033 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
1.83 nM
|
Positive HER2 expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well Calu-3 in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Lung adenocarcinoma | Calu-3 cells | CVCL_0609 | ||
| Experiment 3 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
10.4 nM
|
Positive HER2 expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well NCI-N87 cells in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Gastric tubular adenocarcinoma | NCI-N87 cells | CVCL_1603 | ||
| Experiment 4 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) | > 400 nM | Negative HER2 expression (HER2-) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 800/well NCI-H1975 cells in 80ul media (target negative cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Lung adenocarcinoma | NCI-H1975 cells | CVCL_1511 | ||
FelD1- (AL4c-LP1B)3.45 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
11.4 nM
|
Positive HER2expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well SK-BR-3 cells in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Breast adenocarcinoma | SK-BR-3 cells | CVCL_0033 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
25.1 nM
|
Positive HER2expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well Calu-3 in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Lung adenocarcinoma | Calu-3 cells | CVCL_0609 | ||
| Experiment 3 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
71.5 nM
|
Positive HER2expression (HER2+++/++) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 1000/well NCI-N87 cells in 80 uL media (target positive cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Gastric tubular adenocarcinoma | NCI-N87 cells | CVCL_1603 | ||
| Experiment 4 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
263 nM
|
Negative HER2 expression (HER2-) | ||
| Method Description |
Cells were seeded in their growth media into 96 well plates (Thermo #136101) one day prior to adding ADCs: 800/well NCI-H1975 cells in 80ul media (target negative cells). 20ul assay media diluted ADC/ isotype conjugates (1:4 10 pts starting from 100uM) as well as free drug were transferred to above cells. The plates were incubated at 37°C, 5% CO2 for 6 days.
Click to Show/Hide
|
||||
| In Vitro Model | Lung adenocarcinoma | NCI-H1975 cells | CVCL_1511 | ||
