General Information of This Payload
Payload ID
PAY0FSAHV
Name
CHH0177, 4i-5657, Payload
Synonyms
CHH0177, 4i-5657, Payload
   Click to Show/Hide

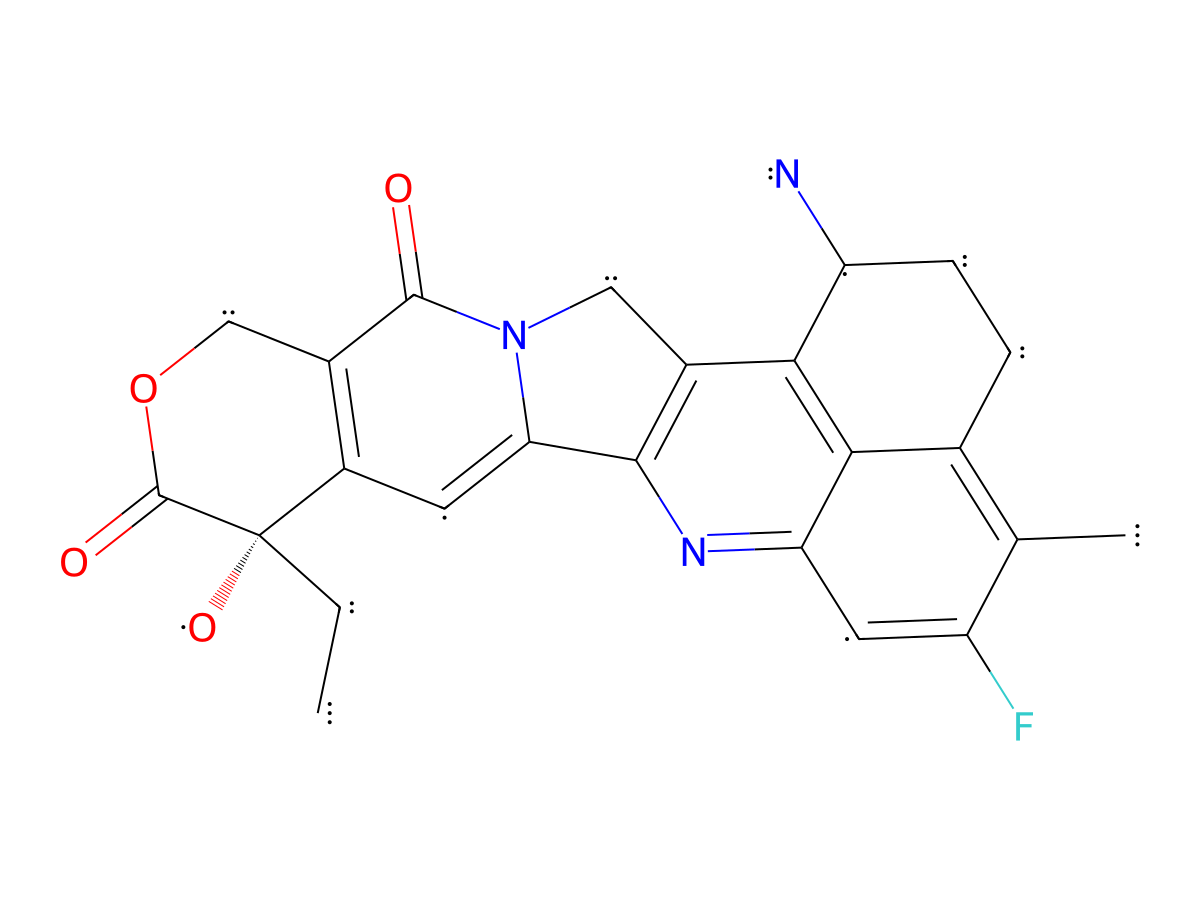

Structure
Formula
C24H22FN3O4
Isosmiles
CC[C@@](C(C=C1C(C(CN12)=C3[C@@H](N)CC4)=NC5=C3C4=C(C)C(F)=C5)=C(C2=O)CO6)(O)C6=O
InChI
InChI=1S/C24H22FN3O4/c1-3-24(31)14-6-18-21-12(8-28(18)22(29)13(14)9-32-23(24)30)19-16(26)5-4-11-10(2)15(25)7-17(27-21)20(11)19/h6-7,16,31H,3-5,8-9,26H2,1-2H3/t16-,24-/m0/s1
InChIKey
ZVYVPGLRVWUPMP-FYSMJZIKSA-N
Pharmaceutical Properties
Molecule Weight
435.455
Polar area
107.44
Complexity
1406.93979
xlogp Value
2.47312
Heavy Count
32
Rot Bonds
1
Hbond acc
7
Hbond Donor
2
Each Antibody-drug Conjugate Related to This Payload
Full Information of The Activity Data of The ADC(s) Related to This Payload
wO2024105206A1 4i-5657 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 2 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 11 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 11 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
wO2024105206A1 4k-2658 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 6 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 12 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (NCI H292: 2500 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 7 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Plasma cell myeloma, Multiple myeloma NCI-H929 cells (-NE) CVCL_1600
Experiment 3 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (NCI H292: 2500 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 7 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Plasma cell myeloma, Multiple myeloma NCI-H929 cells (+NE) CVCL_1600
Experiment 4 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (SUM149PT 2000 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 7 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Breast inflammatory carcinoma SUM149PT cells (+NE) CVCL_3422
Experiment 5 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 12 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
Experiment 6 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (SUM149PT 2000 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 7 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Breast inflammatory carcinoma SUM149PT cells (-NE) CVCL_3422
wO2024105206A1 5i-5657 [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 6 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 13 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (+NE) CVCL_1051
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (NCI H292: 2500 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 8 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Plasma cell myeloma, Multiple myeloma NCI-H929 cells (+NE) CVCL_1600
Experiment 3 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
1.0- 9.9 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (SUM149PT 2000 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 8 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Breast inflammatory carcinoma SUM149PT cells (+NE) CVCL_3422
Experiment 4 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (786-0: 1500 cells/ well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 13 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Renal cell carcinoma 786-O cells (-NE) CVCL_1051
Experiment 5 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (NCI H292: 2500 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone and was added followed by a 96 h incubation in an incubator at 37°C and 8 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Plasma cell myeloma, Multiple myeloma NCI-H929 cells (-NE) CVCL_1600
Experiment 6 Reporting the Activity Date of This ADC [1]
Efficacy Data Activity Concentration at -50% (AC50)
10- 99 nM
Method Description
After cell counting a defined cell number was sowed into a 96-well culture plate with white bottom (from Costar #3610) (SUM149PT 2000 cells/well) in total volume 100 uL. The cells (except MOLM-13 cells, these cells were directly treated) were then incubated in an incubator at 37°C and 5 % carbon dioxide. After 48 h, the medium was replaced. The treatment started by adding the test compounds in 10 uL of culture medium to the cells in triplicates. Concentrations ranging from 10-5 M to 10-13 M were chosen. Two identical treated sets of samples were prepared. One set was treated with the test compound alone, whereas to the second set the test compound and 5nM hum.neutrophil elastase were added followed by a 96 h incubation in an incubator at 37°C and 8 % carbon dioxide.

   Click to Show/Hide
In Vitro Model Breast inflammatory carcinoma SUM149PT cells (-NE) CVCL_3422
References
Ref 1 Antibody-drug conjugates cleavable in a tumor microenvironment
