Linker Information
General Information of This Linker
| Linker ID |
LIN0VLAZJ
|
|||||
|---|---|---|---|---|---|---|
| Linker Name |
Solubilizing group-PEG2-Hypoxia sensitive linker-Azobenzene
|
|||||
| Linker Type |
Hypoxia sensitive linker
|
|||||
| Antibody-Linker Relation |
Cleavable
|
|||||

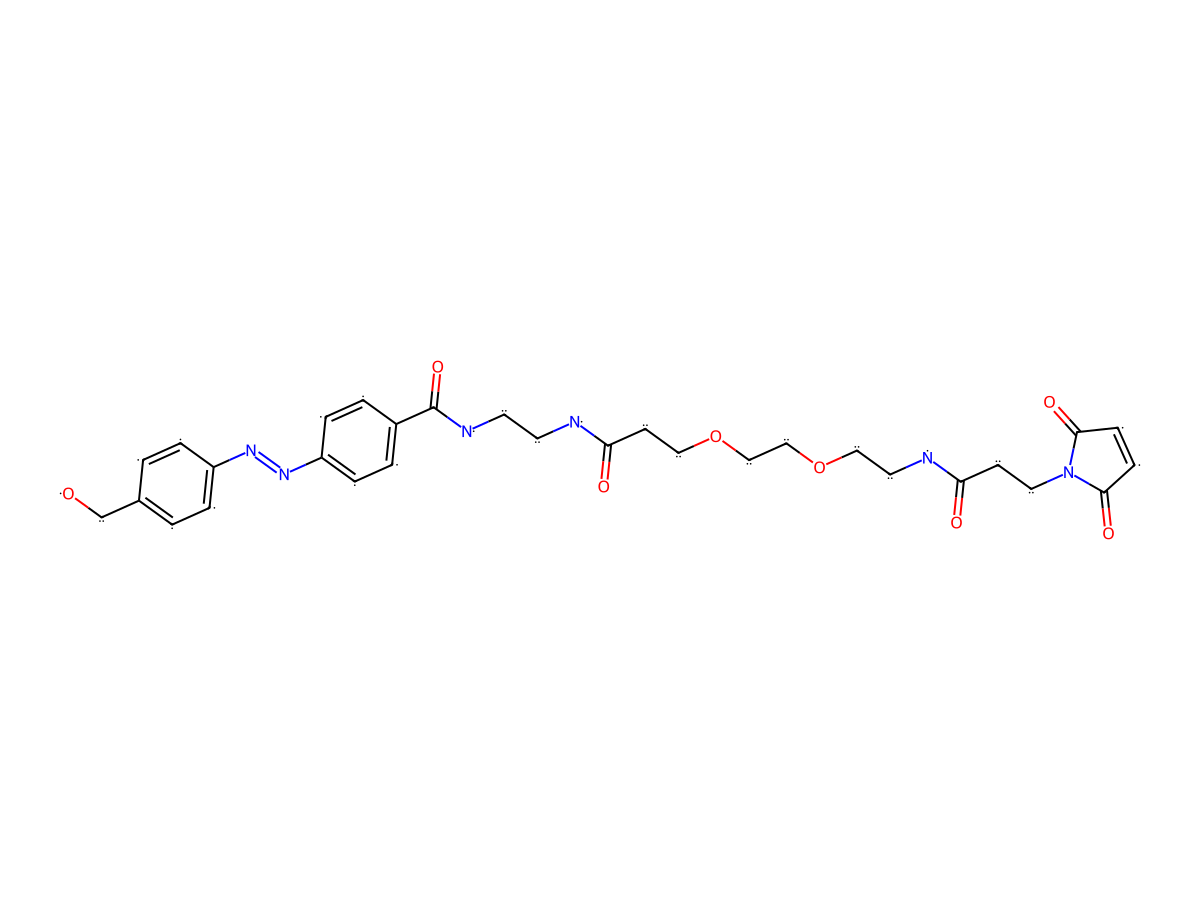

| Structure |
|
|||||
| Formula |
C30H36N6O8
|
|||||
| Isosmiles |
OCC1=CC=C(/N=N/C(C=C2)=CC=C2C(NCCNC(CCOCCOCCNC(CCN3C(C=CC3=O)=O)=O)=O)=O)C=C1
|
|||||
| InChI |
InChI=1S/C30H36N6O8/c37-21-22-1-5-24(6-2-22)34-35-25-7-3-23(4-8-25)30(42)33-14-13-31-27(39)12-17-43-19-20-44-18-15-32-26(38)11-16-36-28(40)9-10-29(36)41/h1-10,37H,11-21H2,(H,31,39)(H,32,38)(H,33,42)/b35-34+
|
|||||
| InChIKey |
RWABVIRRVVLMPZ-XAHDOWKMSA-N
|
|||||
| Pharmaceutical Properties |
Molecule Weight
|
608.652
|
Polar area
|
188.09
|
||
|
Complexity
|
1256.553564
|
xlogp Value
|
1.2949
|
|||
|
Heavy Count
|
44
|
Rot Bonds
|
19
|
|||
|
Hbond acc
|
10
|
Hbond Donor
|
4
|
|||
Each Antibody-drug Conjugate Related to This Linker
Full Information of The Activity Data of The ADC(s) Related to This Linker
aZO-ADC-2 [Investigative]
Discovered Using Cell Line-derived Xenograft Model
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Tumor Growth lnhibition value (TGl) |
62.36%
|
Low HER2 expression (HER2+) | ||
| Method Description |
Investigated the antitumour effect of 12 MG/KG AZO-ADC-2 in a Herceptin-resistant, HER2low JIMT-1 xenograft tumour model.
|
||||
| In Vivo Model | Herceptin-resistant, HER2-low JIMT-1 xenograft tumour model | ||||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Tumor Growth lnhibition value (TGl) |
90.97%
|
High HER2 expression (HER2+++) | ||
| Method Description |
In the HER2high NCI-N87 xenograft model, Herceptin, AZO-ADC-2 and VC-ADC were administered once a week at a dose of 5 or 10 mg/kg for four consecutive weeks. Compared with the control group, AZO-ADC-2 (5 mg/kg) treatment group displayed significant and sustained suppression of tumour growth with an inhibition rate of 90.97 %
|
||||
| In Vivo Model | HER2high NCI-N87 xenograft model | ||||
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.016 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to HER2+ SK-BR-3 cells
|
||||
| In Vitro Model | Breast adenocarcinoma | SK-BR-3 cells | CVCL_0033 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.027 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to HER2+ BK474 cells
|
||||
| In Vitro Model | Invasive breast carcinoma | BT-474 cells | CVCL_0179 | ||
| Experiment 3 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.053 nM
|
|||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV3/MCF-7 co-culture under 0.1% O2
|
||||
| In Vitro Model | Ovarian serous cystadenocarcinoma; Invasive breast carcinoma of no special type | SKOV3/MCF-7 co-culture cells | CVCL_0532; CVCL_0031 | ||
| Experiment 4 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.063 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV-3 cells under 0.1 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 5 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.069 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to HER2+ NCI-N87 cells
|
||||
| In Vitro Model | Gastric tubular adenocarcinoma | NCI-N87 cells | CVCL_1603 | ||
| Experiment 6 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.079 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV-3 cells under 1 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 7 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.088 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-0/4/6/8 to SKOV-3 cells under 0.1 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 8 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.19 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to BT474-HDR cells under 0.1% O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 9 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.28 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-0/4/6/8 to BT474-HDR cells under 0.1 % O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 10 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
0.57 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to BT474-HDR cells under 1 % O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 11 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
3.74 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV-3 cells under 5 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 12 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
9.12 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to BT474-HDR cells under 5 % O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 13 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
11.05 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-0/4/6/8 toBT474-HDR cells under 20 % O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 14 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
27.67 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-0/4/6/8 to SKOV-3 cells under 20 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 15 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
66.8 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV-3 cells under 20 % O2
|
||||
| In Vitro Model | Ovarian serous adenocarcinoma | SKOV-3 cells | CVCL_0532 | ||
| Experiment 16 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
109.1 nM
|
High HER2 expression (HER2+++) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to BT474-HDR cells under 20 % O2
|
||||
| In Vitro Model | Invasive breast carcinoma of no special type | BT474-HDR cells | CVCL_0179 | ||
| Experiment 17 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
115.4 nM
|
Low HER2 expression (HER2+) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to HER2- MCF-7 cells
|
||||
| In Vitro Model | Invasive breast carcinoma | MCF-7 cells | CVCL_0031 | ||
| Experiment 18 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
134.7 nM
|
|||
| Method Description |
Cytotoxicity of AZO-ADC-2 to SKOV3/MCF-7 co-culture under 20% O2
|
||||
| In Vitro Model | Ovarian serous cystadenocarcinoma; Invasive breast carcinoma of no special type | SKOV3/MCF-7 co-culture cells | CVCL_0532; CVCL_0031 | ||
| Experiment 19 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) |
266.93 nM
|
|||
| Method Description |
Cytotoxicity of AZO-ADC-2 to normal cells, LO2 cells
|
||||
| In Vitro Model | Human papillomavirus-related endocervical adenocarcinoma | LO2 cells | CVCL_6926 | ||
| Experiment 20 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 666 nM | Low HER2 expression (HER2+) | ||
| Method Description |
Cytotoxicity of AZO-ADC-2 to HER2- MDA-MB-231 cells
|
||||
| In Vitro Model | Breast adenocarcinoma | MDA-MB-231 cells | CVCL_0062 | ||
| Experiment 21 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 666 nM | |||
| Method Description |
Cytotoxicity of AZO-ADC-2 to normal cells, NIH3T3 cells
|
||||
| In Vitro Model | Normal | NIH3T3 cells | CVCL_0594 | ||
| Experiment 22 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 666 nM | |||
| Method Description |
Cytotoxicity of AZO-ADC-2 to normal cells, 293T cells
|
||||
| In Vitro Model | Normal | 293T cells | CVCL_0063 | ||
