Linker Information
General Information of This Linker
| Linker ID |
LIN0VKJHT
|
|||||
|---|---|---|---|---|---|---|
| Linker Name |
Mm-C6-PEG4-Val-Ala-PAB
|
|||||
| Linker Type |
Unclear
|
|||||
| Antibody-Linker Relation |
Cleavable
|
|||||

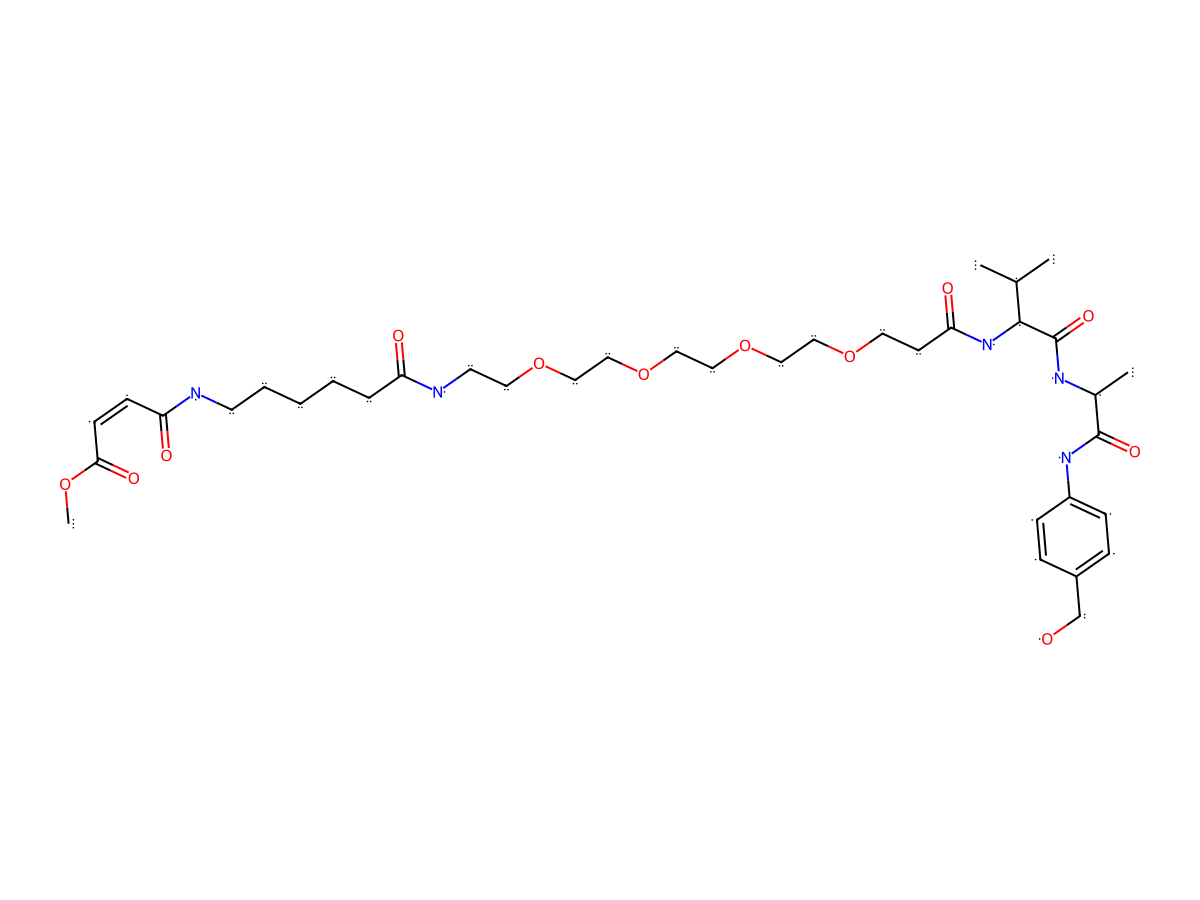

| Structure |
|
|||||
| Formula |
C37H59N5O12
|
|||||
| Isosmiles |
COC(/C=C\C(NCCCCCC(NCCOCCOCCOCCOCCC(N[C@@H](C(C)C)C(N[C@H](C(NC1=CC=C(CO)C=C1)=O)C)=O)=O)=O)=O)=O
|
|||||
| PubChem CID | ||||||
| InChI |
InChI=1S/C37H59N5O12/c1-27(2)35(37(49)40-28(3)36(48)41-30-11-9-29(26-43)10-12-30)42-33(46)15-18-51-20-22-53-24-25-54-23-21-52-19-17-39-31(44)8-6-5-7-16-38-32(45)13-14-34(47)50-4/h9-14,27-28,35,43H,5-8,15-26H2,1-4H3,(H,38,45)(H,39,44)(H,40,49)(H,41,48)(H,42,46)/b14-13-/t28-,35-/m0/s1
|
|||||
| InChIKey |
WYJXNWFRRUAKIS-TXUOPLLDSA-N
|
|||||
| Pharmaceutical Properties |
Molecule Weight
|
765.902
|
Polar area
|
228.95
|
||
|
Complexity
|
1229.08542
|
xlogp Value
|
0.7414
|
|||
|
Heavy Count
|
54
|
Rot Bonds
|
30
|
|||
|
Hbond acc
|
12
|
Hbond Donor
|
6
|
|||
Each Antibody-drug Conjugate Related to This Linker
Full Information of The Activity Data of The ADC(s) Related to This Linker
EP3838893B1-ADC-A [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
0.069 nM
|
Positive HER2 expression (HER2+++/++) | ||
| Method Description |
BT-474, 1000cell/well was added to the designated 384-well cell culture plate in the appropriate growth media. The ADCs stock solution was diluted in series in a ratio of 0.064 to 0.075 nmol/L. After 96 hours, the plate was taken from the incubator and equilibrated at room temperature for 10 minutes. 40uL of CellTiter-Glo reagent was added to each well to be tested (the ratio of CellTiter-Glo reagent to medium was 1:1).the plate was then placed at room temperature for 30 minutes, and then reading was carried out on an EnSpire reader for cell counting.
Click to Show/Hide
|
||||
| In Vitro Model | Invasive breast carcinoma | BT-474 cells | CVCL_0179 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
98.357 nM
|
Negative HER2 expression (HER2-) | ||
| Method Description |
MCF-7, 1000cell/well was added to the designated 384-well cell culture plate in the appropriate growth media. The ADCs stock solution was diluted in series in a ratio of 1:3 to produce 10 diluted solutions with different concentrations (the compound stock solution was an L-His buffer salt solution with a concentration of about 2 mg/mL, which was diluted with PBS, and the initial maximum concentration at test point was about 500 mg/mL). 4ul of the compound diluted solutions with different concentrations was distributed into a 384-well plate. After 96 hours, the plate was taken from the incubator and equilibrated at room temperature for 10 minutes. 40uL of CellTiter-Glo reagent was added to each well to be tested (the ratio of CellTiter-Glo reagent to medium was 1:1).the plate was then placed at room temperature for 30 minutes, and then reading was carried out on an EnSpire reader for cell counting.
Click to Show/Hide
|
||||
| In Vitro Model | Invasive breast carcinoma | MCF-7 cells | CVCL_0031 | ||
