Linker Information
General Information of This Linker
| Linker ID |
LIN0NNAXX
|
|||||
|---|---|---|---|---|---|---|
| Linker Name |
Conjugate No.26 Linker
|
|||||
| Linker Type |
Cathepsin-cleavable linker
|
|||||
| Antibody-Linker Relation |
Cleavable
|
|||||

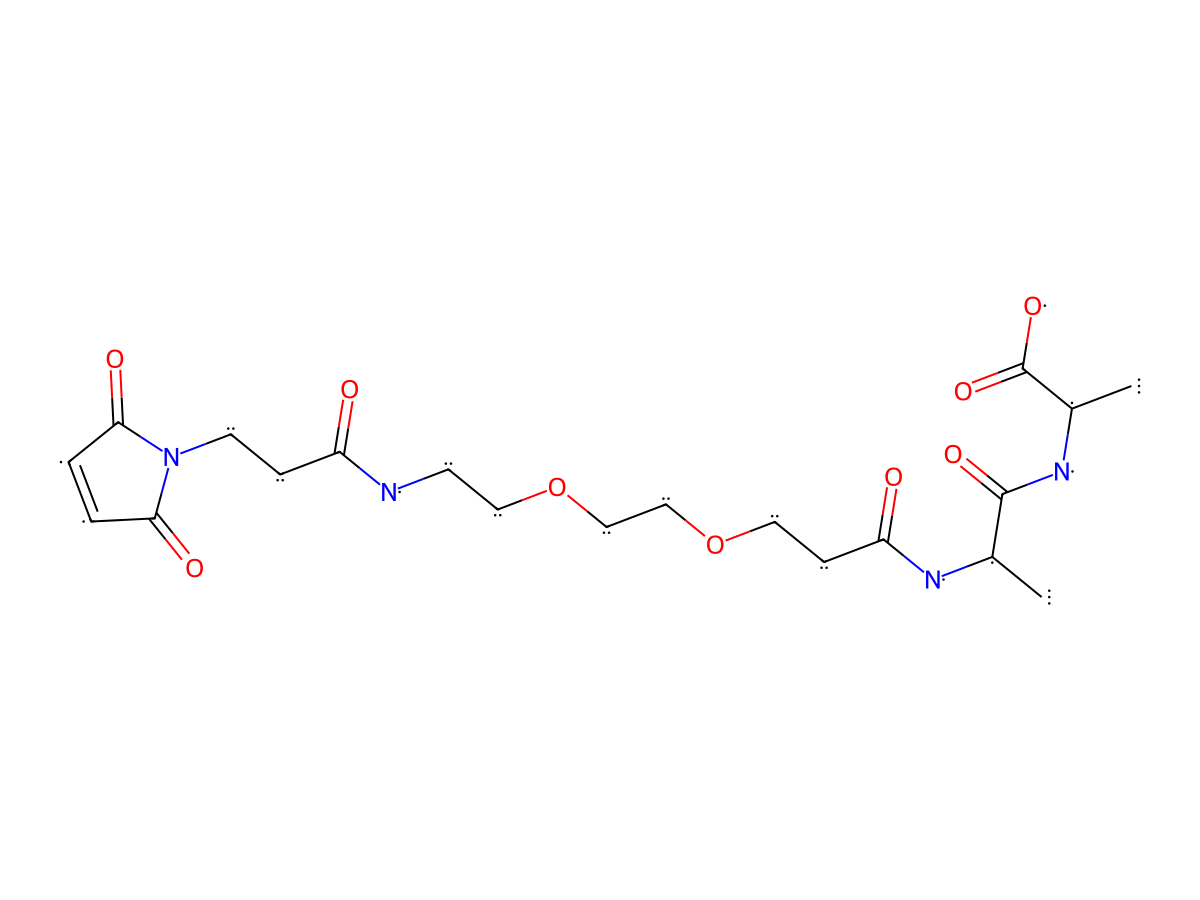

| Structure |
|
|||||
| Formula |
C20H30N4O9
|
|||||
| Isosmiles |
C[C@H](NC(CCOCCOCCNC(CCN1C(C=CC1=O)=O)=O)=O)C(N[C@@H](C)C(O)=O)=O
|
|||||
| InChI |
InChI=1S/C20H30N4O9/c1-13(19(29)23-14(2)20(30)31)22-16(26)6-9-32-11-12-33-10-7-21-15(25)5-8-24-17(27)3-4-18(24)28/h3-4,13-14H,5-12H2,1-2H3,(H,21,25)(H,22,26)(H,23,29)(H,30,31)/t13-,14-/m0/s1
|
|||||
| InChIKey |
HZTNPMXWIGTXQV-KBPBESRZSA-N
|
|||||
| Pharmaceutical Properties |
Molecule Weight
|
470.479
|
Polar area
|
180.44
|
||
|
Complexity
|
707.1372704
|
xlogp Value
|
-2.065
|
|||
|
Heavy Count
|
33
|
Rot Bonds
|
16
|
|||
|
Hbond acc
|
8
|
Hbond Donor
|
4
|
|||
Each Antibody-drug Conjugate Related to This Linker
Full Information of The Activity Data of The ADC(s) Related to This Linker
WO2019126691A1 Conjugate No.26 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
0.07 nM
|
Positive HER2 expression (HER2+++/++) | ||
| Method Description |
Calu3 cells were plated at a density of 5000 cells per well and the next day were treated with antibody-PBD conjugate for 3 days.
|
||||
| In Vitro Model | Lung adenocarcinoma | Calu3 cells | CVCL_0609 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
0.2 nM
|
Moderate HER2 expression (HER2++) | ||
| Method Description |
JIMT1 cells were plated at a density of 5000 cells per well and the next day were treated with antibody-PBD conjugate for 3 days.
|
||||
| In Vitro Model | Breast ductal carcinoma | JIMT1 cells | CVCL_2077 | ||
| Experiment 3 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal inhibitory Concentration (lC50) |
2.15 nM
|
Low HER2 expression (HER2+) | ||
| Method Description |
MCF-7 cells were plated at a density of 5000 cells per well and the next day were treated with antibody-PBD conjugate for 3 days.
|
||||
| In Vitro Model | Invasive breast carcinoma | MCF-7 cells | CVCL_0031 | ||
