Linker Information
General Information of This Linker
| Linker ID |
LIN0HSXAF
|
|||||
|---|---|---|---|---|---|---|
| Linker Name |
DBCO-nnAA-PEG4
|
|||||
| Linker Type |
Unclear
|
|||||
| Antibody-Linker Relation |
Cleavable
|
|||||

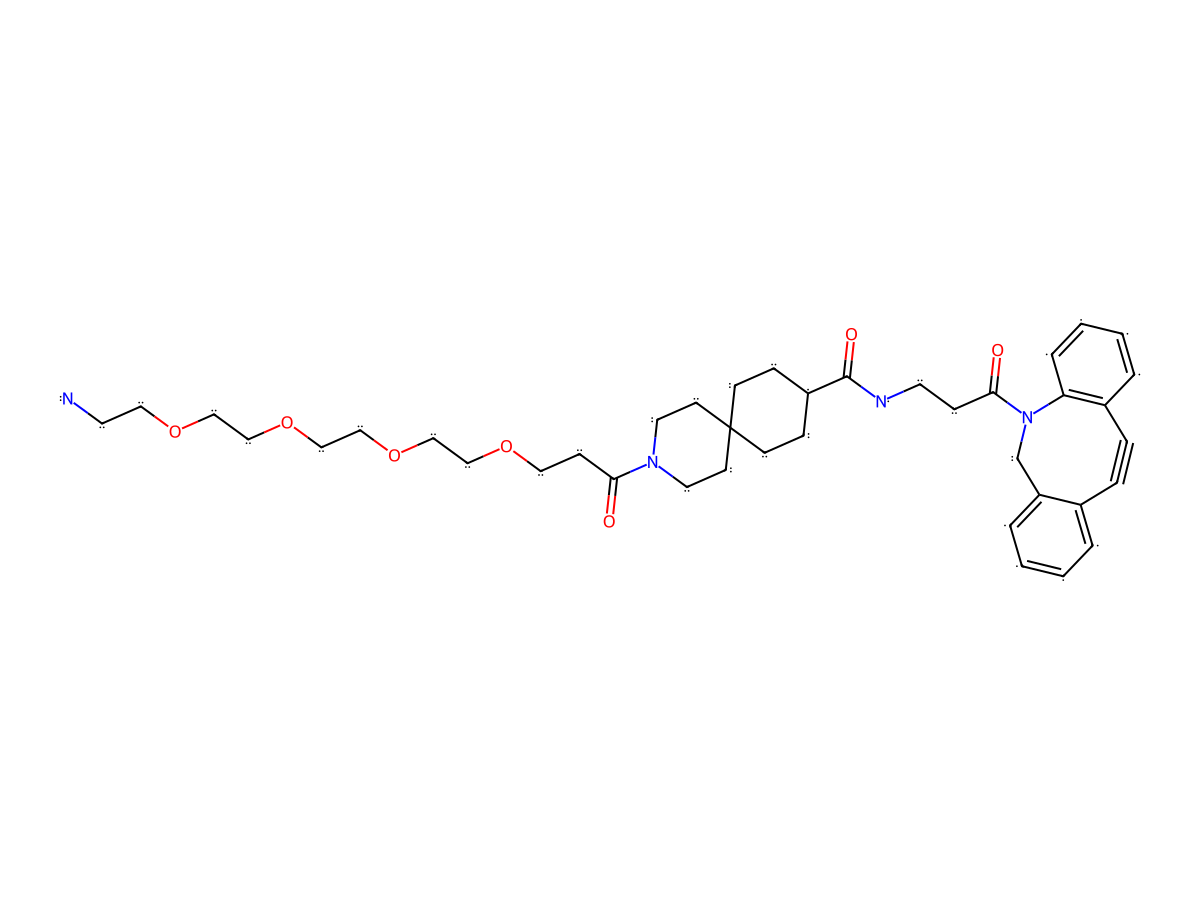

| Structure |
|
|||||
| Formula |
C40H54N4O7
|
|||||
| Isosmiles |
O=C(N(CC1)CCC1(CC2)CCC2C(NCCC(N3CC4=C(C#CC5=C3C=CC=C5)C=CC=C4)=O)=O)CCOCCOCCOCCOCCN
|
|||||
| InChI |
InChI=1S/C40H54N4O7/c41-19-24-49-26-28-51-30-29-50-27-25-48-23-14-37(45)43-21-17-40(18-22-43)15-11-34(12-16-40)39(47)42-20-13-38(46)44-31-35-7-2-1-5-32(35)9-10-33-6-3-4-8-36(33)44/h1-8,34H,11-31,41H2,(H,42,47)
|
|||||
| InChIKey |
SNSIBWSGMROPHG-UHFFFAOYSA-N
|
|||||
| Pharmaceutical Properties |
Molecule Weight
|
702.893
|
Polar area
|
132.66
|
||
|
Complexity
|
1438.096159
|
xlogp Value
|
3.6535
|
|||
|
Heavy Count
|
51
|
Rot Bonds
|
18
|
|||
|
Hbond acc
|
8
|
Hbond Donor
|
2
|
|||
Each Antibody-drug Conjugate Related to This Linker
Full Information of The Activity Data of The ADC(s) Related to This Linker
ZA202500202A D04-F404-LP24 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 10 nM | Positive ROR1 expression (ROR1+++/++) | ||
| Method Description |
Ntera-2 cell at 625 cells/25 pL were seeded in a 384-well plat. ADCs were formulated at 2x starting concentration. Filter sterilized samples were serial diluted (1:3) under sterile conditions and added onto cells in triplicates. For cell viability measurement, 30 microliter of Cell Titer-Glo@ reagent (Promega Corp, Madison, WI) was added into each well, and plates processed as per product instructions.
Click to Show/Hide
|
||||
| In Vitro Model | Embryonal carcinoma | Ntera-2 cells | CVCL_0034 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [1] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 10 nM | Negative ROR1 expression (ROR1-) | ||
| Method Description |
MCF-7 cells at 625 cells/25 pL were seeded in a 384-well plat. ADCs were formulated at 2x starting concentration. Filter sterilized samples were serial diluted (1:3) under sterile conditions and added onto cells in triplicates. For cell viability measurement, 30 microliter of Cell Titer-Glo@ reagent (Promega Corp, Madison, WI) was added into each well, and plates processed as per product instructions.
Click to Show/Hide
|
||||
| In Vitro Model | Invasive breast carcinoma | MCF-7 cells | CVCL_0031 | ||
IN202417103159A D04-F404-LP24 [Investigative]
Revealed Based on the Cell Line Data
| Experiment 1 Reporting the Activity Date of This ADC | [2] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 10 nM | Negative ROR1 expression (ROR1-) | ||
| Method Description |
The cell killing EC5o and Span for RORI ADCs conjugated to different linker warheads at different DARs on RORI positive Ntera-2 cell and RORI negative MCF-7 cells
|
||||
| In Vitro Model | Invasive breast carcinoma | MCF-7 cells | CVCL_0031 | ||
| Experiment 2 Reporting the Activity Date of This ADC | [2] | ||||
| Efficacy Data | Half Maximal Effective Concentration (EC50) | > 10 nM | Positive ROR1 expression (ROR1+++/++) | ||
| Method Description |
The cell killing EC5o and Span for RORI ADCs conjugated to different linker warheads at different DARs on RORI positive Ntera-2 cell and RORI negative MCF-7 cells
|
||||
| In Vitro Model | Embryonal carcinoma | Ntera-2 cells | CVCL_0034 | ||
