General Information of This Linker
Linker ID
LIN0EYRMI
Linker Name
MC-iduronide
Linker Type
Iduronidase-cleavable linker
Antibody-Linker Relation
Cleavable

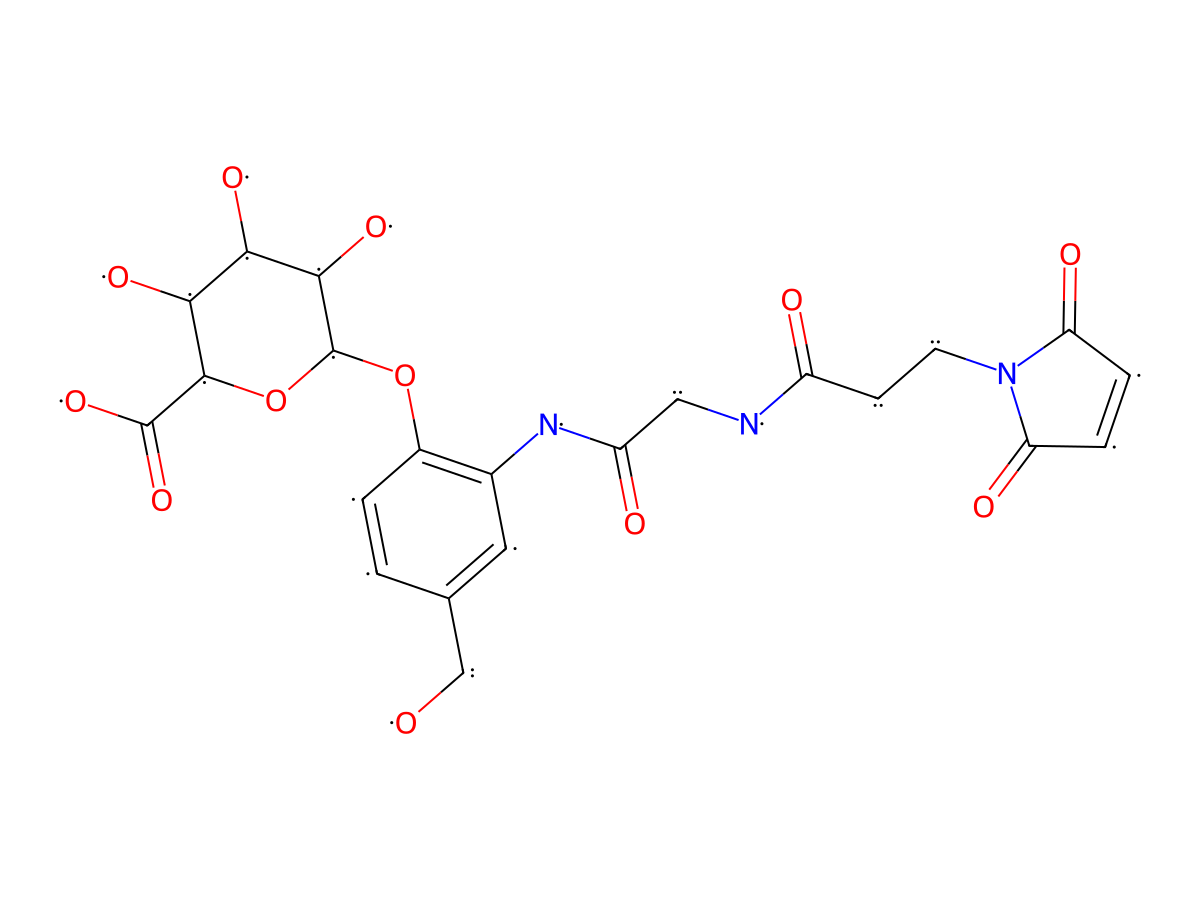

Structure
Formula
C22H25N3O12
Isosmiles
O=C(NCC(NC1=C(O[C@H]2[C@H](O)[C@@H](O)[C@H](O)[C@H](C(O)=O)O2)C=CC(CO)=C1)=O)CCN3C(C=CC3=O)=O
InChI
InChI=1S/C22H25N3O12/c26-9-10-1-2-12(36-22-19(33)17(31)18(32)20(37-22)21(34)35)11(7-10)24-14(28)8-23-13(27)5-6-25-15(29)3-4-16(25)30/h1-4,7,17-20,22,26,31-33H,5-6,8-9H2,(H,23,27)(H,24,28)(H,34,35)/t17-,18-,19+,20+,22+/m0/s1
InChIKey
KMRPRJZQBMVJMT-UDGWLPKNSA-N
Pharmaceutical Properties
Molecule Weight
523.451
Polar area
232.26
Complexity
1041.509292
xlogp Value
-3.1803
Heavy Count
37
Rot Bonds
10
Hbond acc
11
Hbond Donor
7
Each Antibody-drug Conjugate Related to This Linker
Full Information of The Activity Data of The ADC(s) Related to This Linker
aCEA5-iduronide-exatecan [Investigative]
Revealed Based on the Cell Line Data
Click To Hide/Show 4 Activity Data Related to This Level
Experiment 1 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50)
0.07&#1770.01 nM
High CEACAM5 expression (CEACAM5 +++)
Method Description
Human cancer cell lines were obtained from the American Type Culture Collection (CEA5-positive: SK-CO-1, MKN-45, LS174T; CEA5-negative MDA-MB-231) and maintained according to standard culture conditions (SK-CO-1, MKN-45: 37 °C, 5% CO2, 95% humidity; LS174T, MDA-MB-231: 37 °C, 10% CO2, 95% humidity). SK-CO-1 cells were cultured in Minimum Essential Medium Eagle (Sigma-Aldrich, FG0325) including l-alanylglutamine supplemented with 10% fetal bovine serum (FBS) and 1 mM sodium pyruvate. LS174T cells were cultured in Dulbecco's modified Eagle's medium (DMEM) (Sigma-Aldrich, FG0435) including l-alanyl-glutamine supplemented with 10% FBS, 1 mM sodium pyruvate, and 1% (v/v) nonessential amino acid 100× mix (Sigma-Aldrich, M7145). MDA-MBA-231 cells were cultured in DMEM including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. MKN-45 cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 (Sigma-Aldrich, FG1215) medium including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. For subculturing, adherent cells were detached by the addition of TrypLE Express (1×) (Gibco, 12604-013), diluted with fresh medium, and transferred into a new culturing flask. For the evaluation of exatecan and exatecan conjugates, 90 uL of viable cell (vc) suspension was seeded into 96-well plates (SK-CO-1 2,500 vc/well, MKN-45 500 vc/well, LS174T 2,500 vc/well, MDA-MB-231 1,500 vc/well) followed by incubation (37 °C, 5 or 10% CO2) in a humid chamber overnight. Test compounds were formulated at a 10-fold starting concentration, prepared in serial dilution (1:4), and 10 uL was added to cells for each dilution in triplicates. The cell viability was determined after 6 days using the CellTiter-Glo reagent (Promega, G7573) according to the manufacturer's instructions. Luminescence values were measured by using a Varioskan plate reader (Thermo Fisher) and normalized to the luminescence of nontreated cells. Dose-response curves were fitted using the log (inhibitor) vs response variable slope 4-parameter fitting function of GraphPad Prism (GraphPad Software, Inc.). Data are shown as % relative cell viability versus molar compound concentration. Error bars indicate the standard deviation (SD) of triplicates. Geometric mean values of IC50's derived from multiple experiments were calculated.

   Click to Show/Hide
In Vitro Model Colon adenocarcinoma SK-CO-1 cells CVCL_0626
Experiment 2 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50)
0.2&#1770.8 nM
High CEACAM5 expression (CEACAM5 +++)
Method Description
Human cancer cell lines were obtained from the American Type Culture Collection (CEA5-positive: SK-CO-1, MKN-45, LS174T; CEA5-negative MDA-MB-231) and maintained according to standard culture conditions (SK-CO-1, MKN-45: 37 °C, 5% CO2, 95% humidity; LS174T, MDA-MB-231: 37 °C, 10% CO2, 95% humidity). SK-CO-1 cells were cultured in Minimum Essential Medium Eagle (Sigma-Aldrich, FG0325) including l-alanylglutamine supplemented with 10% fetal bovine serum (FBS) and 1 mM sodium pyruvate. LS174T cells were cultured in Dulbecco's modified Eagle's medium (DMEM) (Sigma-Aldrich, FG0435) including l-alanyl-glutamine supplemented with 10% FBS, 1 mM sodium pyruvate, and 1% (v/v) nonessential amino acid 100× mix (Sigma-Aldrich, M7145). MDA-MBA-231 cells were cultured in DMEM including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. MKN-45 cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 (Sigma-Aldrich, FG1215) medium including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. For subculturing, adherent cells were detached by the addition of TrypLE Express (1×) (Gibco, 12604-013), diluted with fresh medium, and transferred into a new culturing flask. For the evaluation of exatecan and exatecan conjugates, 90 uL of viable cell (vc) suspension was seeded into 96-well plates (SK-CO-1 2,500 vc/well, MKN-45 500 vc/well, LS174T 2,500 vc/well, MDA-MB-231 1,500 vc/well) followed by incubation (37 °C, 5 or 10% CO2) in a humid chamber overnight. Test compounds were formulated at a 10-fold starting concentration, prepared in serial dilution (1:4), and 10 uL was added to cells for each dilution in triplicates. The cell viability was determined after 6 days using the CellTiter-Glo reagent (Promega, G7573) according to the manufacturer's instructions. Luminescence values were measured by using a Varioskan plate reader (Thermo Fisher) and normalized to the luminescence of nontreated cells. Dose-response curves were fitted using the log (inhibitor) vs response variable slope 4-parameter fitting function of GraphPad Prism (GraphPad Software, Inc.). Data are shown as % relative cell viability versus molar compound concentration. Error bars indicate the standard deviation (SD) of triplicates. Geometric mean values of IC50's derived from multiple experiments were calculated.

   Click to Show/Hide
In Vitro Model Colon adenocarcinoma LS174T cells CVCL_1384
Experiment 3 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50)
0.35&#1770.05 nM
High CEACAM5 expression (CEACAM5 +++)
Method Description
Human cancer cell lines were obtained from the American Type Culture Collection (CEA5-positive: SK-CO-1, MKN-45, LS174T; CEA5-negative MDA-MB-231) and maintained according to standard culture conditions (SK-CO-1, MKN-45: 37 °C, 5% CO2, 95% humidity; LS174T, MDA-MB-231: 37 °C, 10% CO2, 95% humidity). SK-CO-1 cells were cultured in Minimum Essential Medium Eagle (Sigma-Aldrich, FG0325) including l-alanylglutamine supplemented with 10% fetal bovine serum (FBS) and 1 mM sodium pyruvate. LS174T cells were cultured in Dulbecco's modified Eagle's medium (DMEM) (Sigma-Aldrich, FG0435) including l-alanyl-glutamine supplemented with 10% FBS, 1 mM sodium pyruvate, and 1% (v/v) nonessential amino acid 100× mix (Sigma-Aldrich, M7145). MDA-MBA-231 cells were cultured in DMEM including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. MKN-45 cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 (Sigma-Aldrich, FG1215) medium including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. For subculturing, adherent cells were detached by the addition of TrypLE Express (1×) (Gibco, 12604-013), diluted with fresh medium, and transferred into a new culturing flask. For the evaluation of exatecan and exatecan conjugates, 90 uL of viable cell (vc) suspension was seeded into 96-well plates (SK-CO-1 2,500 vc/well, MKN-45 500 vc/well, LS174T 2,500 vc/well, MDA-MB-231 1,500 vc/well) followed by incubation (37 °C, 5 or 10% CO2) in a humid chamber overnight. Test compounds were formulated at a 10-fold starting concentration, prepared in serial dilution (1:4), and 10 uL was added to cells for each dilution in triplicates. The cell viability was determined after 6 days using the CellTiter-Glo reagent (Promega, G7573) according to the manufacturer's instructions. Luminescence values were measured by using a Varioskan plate reader (Thermo Fisher) and normalized to the luminescence of nontreated cells. Dose-response curves were fitted using the log (inhibitor) vs response variable slope 4-parameter fitting function of GraphPad Prism (GraphPad Software, Inc.). Data are shown as % relative cell viability versus molar compound concentration. Error bars indicate the standard deviation (SD) of triplicates. Geometric mean values of IC50's derived from multiple experiments were calculated.

   Click to Show/Hide
In Vitro Model Gastric adenocarcinoma MKN-45 cells CVCL_0434
Experiment 4 Reporting the Activity Date of This ADC [1]
Efficacy Data Half Maximal inhibitory Concentration (lC50)
31.7&#1779.2 nM
Negative CEACAM5 expression (CEACAM5-)
Method Description
Human cancer cell lines were obtained from the American Type Culture Collection (CEA5-positive: SK-CO-1, MKN-45, LS174T; CEA5-negative MDA-MB-231) and maintained according to standard culture conditions (SK-CO-1, MKN-45: 37 °C, 5% CO2, 95% humidity; LS174T, MDA-MB-231: 37 °C, 10% CO2, 95% humidity). SK-CO-1 cells were cultured in Minimum Essential Medium Eagle (Sigma-Aldrich, FG0325) including l-alanylglutamine supplemented with 10% fetal bovine serum (FBS) and 1 mM sodium pyruvate. LS174T cells were cultured in Dulbecco's modified Eagle's medium (DMEM) (Sigma-Aldrich, FG0435) including l-alanyl-glutamine supplemented with 10% FBS, 1 mM sodium pyruvate, and 1% (v/v) nonessential amino acid 100× mix (Sigma-Aldrich, M7145). MDA-MBA-231 cells were cultured in DMEM including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. MKN-45 cells were cultured in Roswell Park Memorial Institute (RPMI) 1640 (Sigma-Aldrich, FG1215) medium including l-alanylglutamine supplemented with 10% FBS and 1 mM sodium pyruvate. For subculturing, adherent cells were detached by the addition of TrypLE Express (1×) (Gibco, 12604-013), diluted with fresh medium, and transferred into a new culturing flask. For the evaluation of exatecan and exatecan conjugates, 90 uL of viable cell (vc) suspension was seeded into 96-well plates (SK-CO-1 2,500 vc/well, MKN-45 500 vc/well, LS174T 2,500 vc/well, MDA-MB-231 1,500 vc/well) followed by incubation (37 °C, 5 or 10% CO2) in a humid chamber overnight. Test compounds were formulated at a 10-fold starting concentration, prepared in serial dilution (1:4), and 10 uL was added to cells for each dilution in triplicates. The cell viability was determined after 6 days using the CellTiter-Glo reagent (Promega, G7573) according to the manufacturer's instructions. Luminescence values were measured by using a Varioskan plate reader (Thermo Fisher) and normalized to the luminescence of nontreated cells. Dose-response curves were fitted using the log (inhibitor) vs response variable slope 4-parameter fitting function of GraphPad Prism (GraphPad Software, Inc.). Data are shown as % relative cell viability versus molar compound concentration. Error bars indicate the standard deviation (SD) of triplicates. Geometric mean values of IC50's derived from multiple experiments were calculated.

   Click to Show/Hide
In Vitro Model Breast adenocarcinoma MDA-MB-231 cells CVCL_0062
References
Ref 1 Generation and Characterization of Iduronidase-Cleavable ADCs
